Model No.

NQX0612SA

NQX0612SC

Voltage

DC12V

DC24V

Power

9.6W/m

Ra

>80

CCT

3000K, 4000K, 5000K, 6000K

LED Type

SMD2835

LED Qty

120LEDs/m

Cutting Unit

50mm

Share:

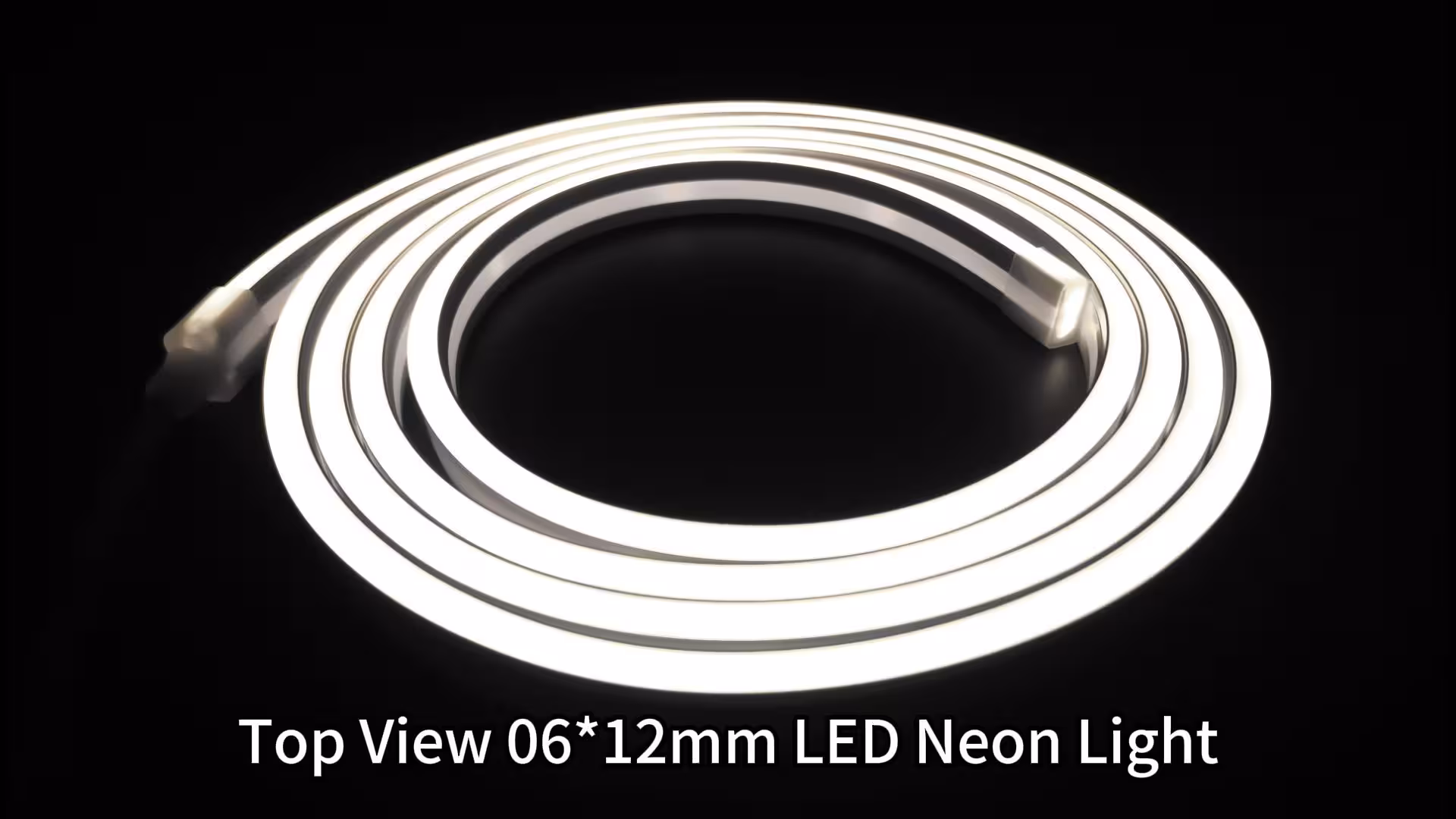

Horizontal Bending Neon LED Stripe Light

Product: NQX0612SC

Side bending design

Super bright, dot-free illumination

Silicone tube sleeved, IP65 water-proof

OEM-ODM Services

Specifications:

Model No.

NQX0612SC

Efficiency

>240lm/m

Input Voltage

DC24V

Beam Angle

120°

Power

9.6W/m

Cut Section

50mm

LED QTY

120LEDs/m

Dimension

5000*6*12mm

CCT

2700K - 6500K

IP Rating

IP65/IP67

SDCM

≤5

Warranty

3 Years

CRI

>80

Package Info

L460*W250*H256mm(300m/Box)

Model No.

RYX06CA

RYX06CC

Voltage

DC12V

DC24V

Power

11W/m

Efficiency

95-100lm/W

Ra

>90

CCT / Wavelength

3000K – 6000K, red, green, blue, yellow

LED Type

COB

LED QTY

480LEDs/m

PCB Width

8mm

Cutting Unit

25mm

50mm

Dimensions:

NQX0612SC

S0612_Neon LED Stripe_Dimension side view
S0612_Neon LED Stripe_Dimension front view
T1010_LED Neon Flex_Min bend diameter_01

Advantages:

Customizable design: LED Neon Flex can be tailored to your specific requirements, including size, color, power, voltage, wiring terminals, etc., ensuring a perfect fit for your project needs.

S0612_Neon LED Stripe_Advantage_01
S0612 Neon LED Stripe Advantage 02

High CRI and brightness; CRI > 80/90.

High-light transmittance optical silicone, dot-free lighting.

S0612_Neon LED Stripe_Advantage_03
S0612_Neon LED Stripe_Advantage_04

Environment-friendly silicone material, better transmittance, and a longer lifetime.

UV-resistant, yellowing-resistant, and salt-resistant, the operating temperature is -25°C to 100°C.

S0612_Neon LED Stripe_Advantage_05

Our Factory

Signlite Opto-electronics Co., LTD
SignliteLED - Lightbox
SignliteLED Offices
SignliteLED Teams
SignliteLED Production Line-07
SignliteLED Production Line-08
SignliteLED Production Line-09
SignliteLED Production Line-10
SignliteLED Production Line-11
SignliteLED Production Line-12
SignliteLED Production Line-13
SignliteLED-Equipment_Spectroradiometer
SignliteLED-Equipment_IES_01

Product Certificates

Product Certificates-01
Product Certificates-02

Why Choose Us?

Why Choose Us

Cable Input Direction

T1010_LED Neon Flex_side input
T1010_LED Neon Flex_straight input
T1010_LED Neon Flex_bottom input
T1010 LED Neon Flex end cap

Neon Inner Structure

T1010_LED Neon Flex_Inner Structure

Color Temperature Optional

T1010_LED Neon Flex_Color Temperature Optional

Bendable, Fireproof, Waterproof

T1010_LED Neon Flex_bendable
T1010_LED Neon Flex_fireproof
High quality fireproof silicone
T1010_LED Neon Flex_IP65 Waterproof
Excellent waterproof performance

Color Rendering Index

T1010_LED Neon Flex_Color Rendering Index

Neon Cutting Process

LED Neon Flex_Neon Cutting Process_Step 1

Step 1: Cut according to your needs.

LED Neon Flex_Neon Cutting Process_Step 2

Step 2: Apply silicone glue at the end.

LED Neon Flex_Neon Cutting Process_Step 3

Step 3: Put the end cap on to firmly fit the light.

LED Neon Flex_Neon Cutting Process_Step 4

Step 4: Wipe off redundant glue with a rag.

Applications

LED Neon Flex_application 01
LED Neon Flex_application 02
LED Neon Flex_application 03
LED Neon Flex_application 04
LED Neon Flex_application 05
LED Neon Flex_application 06

Optional Accessories

Optional Accessories

Optional More Sizes

Optional More Sizes

The following is a cross-section of the LED neon strip:

NQX0410SC-01

NQX0410SC

NQX0612SC-01

NQX0612SC

NAQ1220SC-01

NAQ1220SC

NQX0815SC-01

NQX0815TC

NQX1010TC-01

NQX1010TC

NQX1212TC 01

NQX1212TC

NQX1616TC-01

NQX1616TC

NQX15DC-01

NQX15DC

NQX22CC 01

NQX22CC

Wiring Installation Diagram

Single Color Wiring Diagram

LED neon light_SNL0612XA_single color wiring diagram(1-1)

RGB Wiring Diagram

LED neon light_SNL0612XA_RGB wiring diagram(1-1)

1. When installing the LED neon strip, install it from both ends at the same time; installation from one direction is prohibited.

Installation Notes-01
Installation Notes-02

2. Use the tool to disassemble carefully, and do not pull the LED neon strip directly.

Installation Notes-03
Installation Notes-04

Packaging

LED Neon Flex_5meter reel

5meter/reel

LED Neon Flex Inner Anti Static Bag

Inner anti static bag

LED Neon Flex outer carton

300m/outer carton
