Model No.

NQX0410SA

NQX0410SC

Voltage

DC12V

DC24V

Power

8W/m

Ra

>80

CCT

3000K, 4000K, 5000K, 6000K

LED Type

SMD2835

LED Qty

120LEDs/m

Cutting Unit

50mm

SignliteLED

>

Products

>

LED Neon Strip

>

S0410

Play Video

Share:

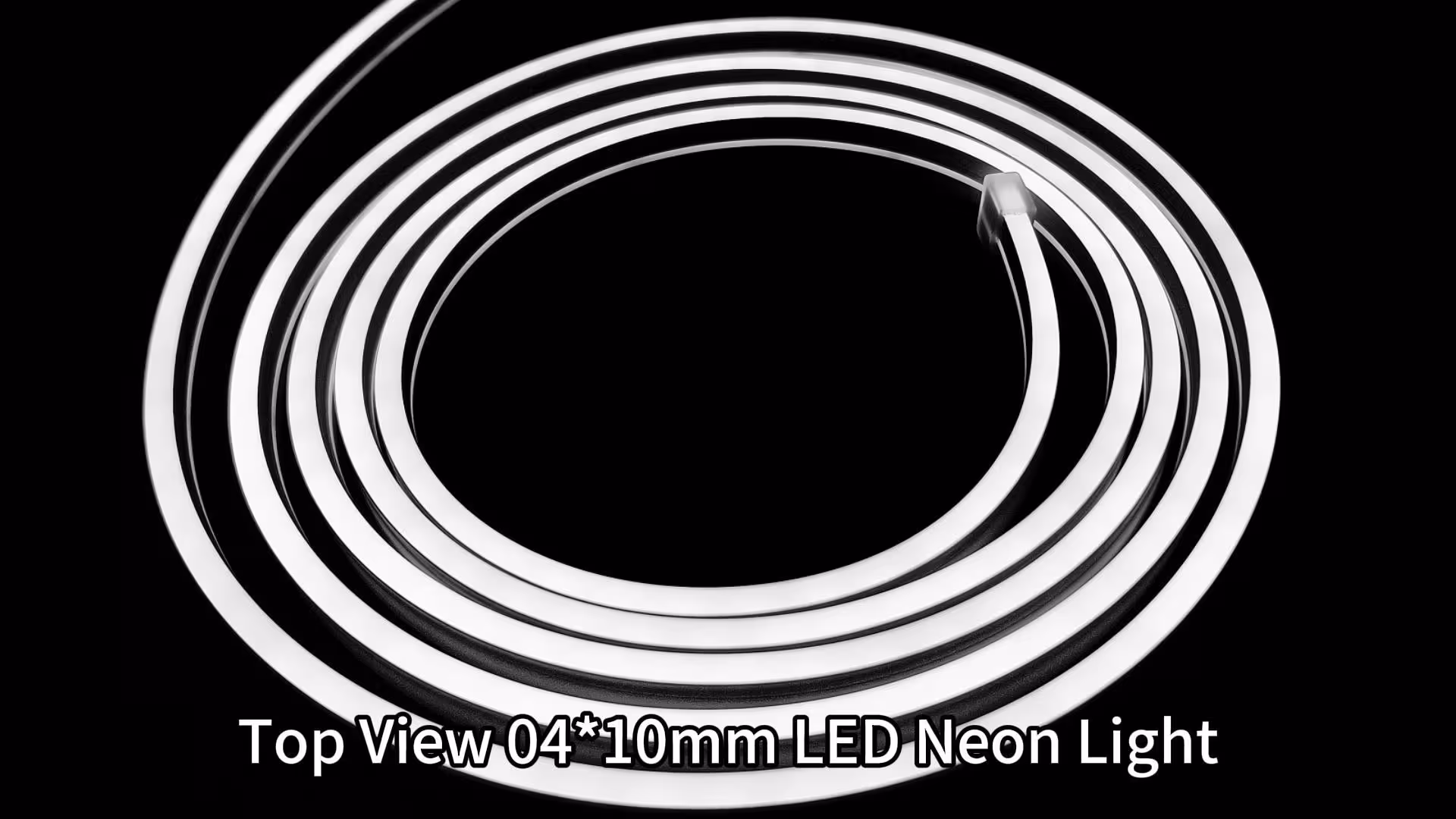

Square 4*10mm Side Bending LED Neon Flex Tape

Product: NQX0410SC

Side bending design

Super bright, dot-free illumination

Silicone tube sleeved, IP65 water-proof

Inquire Now

• NQX1010TC Specification Download

Specifications:

Model No.

NQX0410SC

Lumen

>150lm/m

Input Voltage

DC24V

Beam Angle

120°

Power

6W/m

Cut Section

50mm

LED QTY

120LEDs/m

Dimension

5000*4*10mm

CCT

2700K - 6500K

IP Rating

IP65/IP67

SDCM

≤5

Warranty

3 Years

CRI

>80

Package Info

L460*W250*H256mm(300m/Box)

Model No.

RYX06CA

RYX06CC

Voltage

DC12V

DC24V

Power

11W/m

Efficiency

95-100lm/W

Ra

>90

CCT / Wavelength

3000K – 6000K, red, green, blue, yellow

LED Type

COB

LED QTY

480LEDs/m

PCB Width

8mm

Cutting Unit

25mm

50mm

Dimensions:

NQX0410SC

Advantages:

Customizable design: LED Neon Flex can be tailored to your specific requirements, including size, color, power, voltage, wiring terminals, etc., ensuring a perfect fit for your project needs.

High CRI and brightness; CRI > 80/90.

High-light transmittance optical silicone, dot-free lighting.

Environment-friendly silicone material, better transmittance, and a longer lifetime.

UV-resistant, yellowing-resistant, and salt-resistant, the operating temperature is -25°C to 100°C.

Our Factory

• Factory located in smart manufacturing industry city, Shenzhen.
• A team deeply involved in the industry since year 2010.
• Equipped with complete optical testing instruments.
• Products are UL listed, 100% aged and tested.
• Proficient in OEM & ODM products design, develop and support.
• Deeply cultivate signage and linear led light products more than 10 years.

<<< Show More >>>

Product Certificates

Why Choose Us?

Cable Input Direction

Neon Inner Structure

Color Temperature Optional

Bendable, Fireproof, Waterproof

Color Rendering Index

Neon Cutting Process

Step 1: Cut according to your needs.

Step 2: Apply silicone glue at the end.

Step 3: Put the end cap on to firmly fit the light.

Step 4: Wipe off redundant glue with a rag.

Applications

Optional Accessories

Optional More Sizes

The following is a cross-section of the LED neon strip:

NQX0410SC

NQX0612SC

NAQ1220SC

NQX0815TC

NQX1010TC

NQX1212TC

NQX1616TC

NQX15DC

NQX22CC

Wiring Installation Diagram

Single Color Wiring Diagram

RGB Wiring Diagram

1. When installing the LED neon strip, install it from both ends at the same time; installation from one direction is prohibited.

2. Use the tool to disassemble carefully, and do not pull the LED neon strip directly.

Packaging

5meter/reel

Inner anti static bag

300m/outer carton
