LED strip lights can be used for outdoor lighting. The waterproof layer of the outdoor LED light strip is made of silicone material, which has excellent properties such as anti-atmospheric aging, UV aging, etc. Therefore, the waterproof LED light strip can work normally under complicated outdoor weather conditions.
However, special attention needs to be paid to the waterproof grade of the LED controller and LED power supply used in the outdoor LED strip lights to be selected. In addition, waterproof treatment must be done when cutting and connecting outdoor LED strip lights to prevent water from entering and causing a short circuit.
Next, I will introduce you to SignliteLED’s five hot outdoor waterproof LED strip lights, focusing on different outdoor application scenarios.
1. High Voltage Driverless Outdoor LED Strip Lights
Driverless Outdoor SMD LED Strip Lights
- Tipo di LED: SMD2835/SMD5050
- LED Q.tà per metro Opzione: 60/80/120
- Opzione larghezza PCB: 10 mm/12 mm
- Opzione colore: 2700K/3000K/4000K/5000K/6500K/RGB
- Opzione CRI: 80/90
- Tensione di ingresso: AC120V/AC220V
- Potenza per metro: 7W/10W
- Opzione di grado IP: IP67/IP68
- Garanzia: 3 anni
Driverless Outdoor COB LED Strip Lights
- LED Q.tà per metro Opzione: 320chips (Sanan)
- Opzione larghezza PCB: 12 mm
- Opzione colore: 2700K/3000K/4000K/6000K
- CRI: >80
- Tensione di ingresso: AC120V/AC220V
- Potenza per metro: 8W
- Efficienza: 90-110 lumen/watt
- Opzione di grado IP: IP67/IP68
- Garanzia: 2 anni
This IP68 LED outdoor strip light uses AC high voltage with a variety of monochrome and RGB color modes and is available in AC110V or AC220V voltage. The high voltage driverless LED strip plugs directly into the socket and can be used without an LED transformer or LED power supply.
High voltage outdoor LED strips have no voltage drop for long-distance operation. These outdoor LED strip lights support long run projects of 10m, 20m, 30m, 40m, 50m, and 100m, such as architectural lighting and bridge lighting.
The high voltage of this driverless outdoor LED strip ensures a strong light output, even over large spaces, without uneven light output. Moreover, it has good waterproof and dustproof performance and can easily cope with outdoor wind and rain, with strong durability. Especially need to emphasize that the use of high voltage outdoor LED strip lights should be extra careful to ensure personal safety.
2. Outdoor Low Voltage LED Strip Lights
Outdoor Low Voltage SMD LED Strip Lights
- Tipo di LED: SMD2835
- LED Q.tà per metro Opzione: 60/72/120/128/140
- Opzione larghezza PCB: 6 mm/8 mm/10 mm
- Opzione colore: 2700K/3000K/4000K/5000K/6500K/customizable
- Opzione CRI: 80/90
- Tensione di ingresso: DC12V/DC24V
- Potenza per metro: 6W/8W/9.6W/12W/14.4W/19.2W
- Efficienza: 100-200 lumen/watt
- Opzione di grado IP: IP65/IP67/IP68
- Garanzia: 3 anni
12VDC/24VDC is the most widely used voltage for outdoor LED strip lights, which can be used in cars, ships, ferries and other daily life places. Low voltage has high safety and no risk when touching. When using low voltage 12V/24V outdoor LED strip, you need to connect the outdoor LED strip to a 12V or 24V LED power supply and then plug it into a socket.
Low voltage waterproof LED strips are often used for small projects (low voltage LED strips are 5 meters/16.4 feet long in a roll) such as kitchen lighting, bathroom lighting, deck lighting and other outdoor lighting due to the voltage drop.
3. Long Run Constant Current Waterproof LED Strips
Constant Current Waterproof SMD LED Strips
- Tipo di LED: SMD2835
- Opzione metro per rotolo: 10m/20m/30m/50m
- Opzione larghezza PCB: 10 mm/12 mm
- Opzione colore: 2700K/3000K/4000K/5000K/6500K
- Opzione CRI: 80/90
- Tensione di ingresso: DC24V/DC36V/DC48V
- Potenza per metro: 4,2W/7,2W/8,5W/12W
- Opzione di grado IP: IP65/IP67/IP68
- Garanzia: 5 anni
Long run constant current waterproof LED strip uses constant current IC to keep the color and brightness of each LED light consistent. Constant current LED strip is suitable for large projects that require long runs, but unlike high voltage outdoor LED strip, it still uses safe and reliable low voltage (24VDC, 36VDC and 48VDC) and is the low voltage configuration version of the Ultra Long LED Strip. The constant current waterproof LED strip supports 10m, 15m, 20m, 30m and 50m length options.

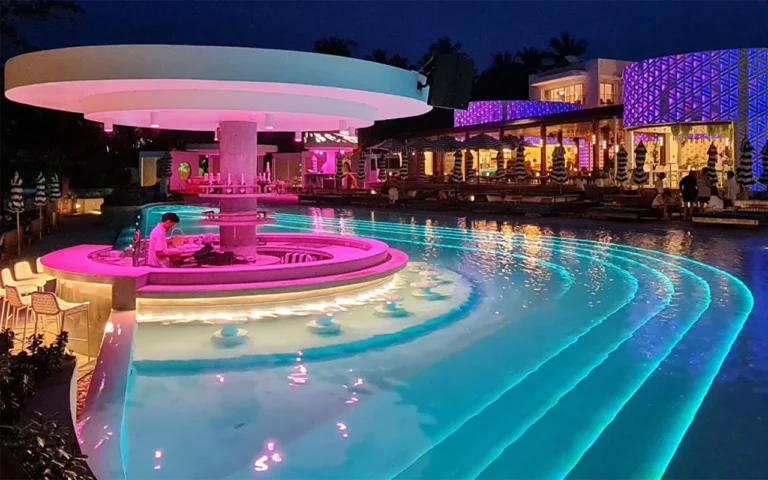

This constant current waterproof light strip has four waterproof ratings, of which IP67 and IP68 are suitable for outdoor environments. IP67 waterproof LED light strip can not be immersed in water for a long time, and it has enough protection in general outdoor environments. If you need to use it for swimming pool or courtyard water feature, you need to use IP68 waterproof LED strip.
4. Waterproof COB LED Strip Lights
Outdoor Waterproof COB LED Strip Lights
- LED Q.tà per metro Opzione: 320/384/480/528chip (Sanan)
- Opzione larghezza PCB: 8 mm/10 mm
- Opzione colore: 2700K/3000K/4000K/6500K/Red/Green/Blue/Customized
- CRI: >90
- Tensione di ingresso: DC12V/DC24V
- Potenza per metro: 8W/10W/11W/14W
- Efficienza: 90-110 lumen/watt
- Opzione di grado IP: IP65/IP67/IP68
- Garanzia: 3 anni
Compared with waterproof SMD LED strip lights, waterproof COB LED strip lights has no light spots, has soft linear light and is more flexible.
Outdoor waterproof COB LED strips are also 12VDC or 24VDC low voltage LED strips. They have any single color light you want: 2200K warm white, 2700K warm white, 3000K soft white, 4000K neutral white, 6500K daylight white, red, green, blue, pink, ice blue, and amber.
The outdoor COB LED strip is available in three different densities and widths: 384 LEDs/m and 480 LEDs/m for 8 mm width and 512 LEDs/m for 10 mm width. Similarly, this outdoor COB LED strip is waterproof rated to IP67 and IP68.
5. Double/Triple Row Outdoor LED Strip Lights
Double/Triple Row Outdoor SMD LED Strip Lights
- Tipo di LED: SMD2835
- LED Q.tà per metro Opzione: 196/252/280/420
- Opzione larghezza PCB: 15mm/19mm/24mm/40mm
- Opzione colore: 2700K/3000K/4000K/5000K/6500K
- Opzione CRI: 80/90
- Tensione di ingresso: DC24V
- Potenza per metro: 20W/26W/25W/40W
- Brightness: 2750/3510/33305313 lumen/m
- Opzione di grado IP: IP67/IP68
- Garanzia: 5 anni
Super bright double/triple-row LED strips are a good choice for applications where brightness is required and there is enough space for installation.
These bright outdoor LED strips are available in many LED color temperatures and light colors: 3000K soft white, 4000K natural white, 6000K pure white, 7000K cool white, red, green, blue, yellow, and RGB + 6000K white, perfect for small outdoor projects.
Due to the excessive number of LEDs integrated into the double/triple-row outdoor LED strip, the heat generation is high, so it is not suitable to be made into an IP68 fully potted and sealed waterproof rating but rather wrapped with a silicone sleeve, which is not suitable to be immersed in water.
In short, different outdoor LED light strips have their own characteristics. According to their actual use and needs, you can choose, and you can easily create the ideal outdoor light world. Hopefully, this guide will help you find the best one for your own outdoor space and make the night outdoor life more exciting!
